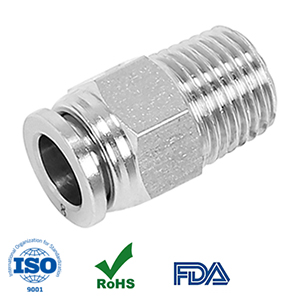

4mm O.D tube to M4x0.7 thread male straight 316 stainless steel push in fitting is applied to high-temperature environments and applications requiring corrosion resistance.
Thread with an O-ring for sealing face.
316 stainless steel products approved by FDA.

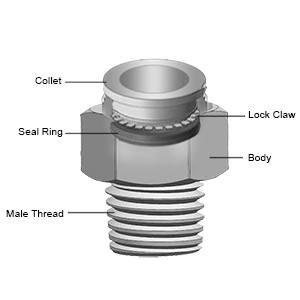

| SPECIFICATIONS | |||
| Collet | 316 Stainless Steel | 316 SS | 316 Inox |
| Lock Claw | 303 Stainless Steel | 303 SS | 303 Inox |
| Seal Ring | FKM | Fluororubber | Viton |
| Body | 316 Stainless Steel | 316 SS | 316 Inox |
| Thread | 316 Stainless Steel | 316 SS | 316 Inox |
| Tube O.D - Male Thread |
4mm - M4 x 0.7 | ||
| Applicable Fluid | Compressed Air, Vacuum, Water | ||
| Working Pressure | 0~2.0 MPa | 290 PSI | |
| Negative Pressure | -100Kpa | -29.5 In Hg | |
| Working Temperature | -20°C ∽150°C | -4℉∽302℉ | |
